NanoEntek

Disposable Hemocytometer (2 tests)

A precision disposable plastic hemocytometer, developed to solve the problems of conventional Glass hemocytometer

KEY FEATURES & BENEFITS
- No coverslip required
- No need to wash for reuse
- Accurate and reliable
- Made Quartz grade optical plastic

The World's First True Disposable Hemocytometer

C-Chip 2ch, disposable plastic hemocytometer

- No coverslip required
- No need to wash for reuse
- Accurate and reliable
- Made of sturdy and strong Quartz grade optical plastic
- Bright grid pattern

Advantage #1

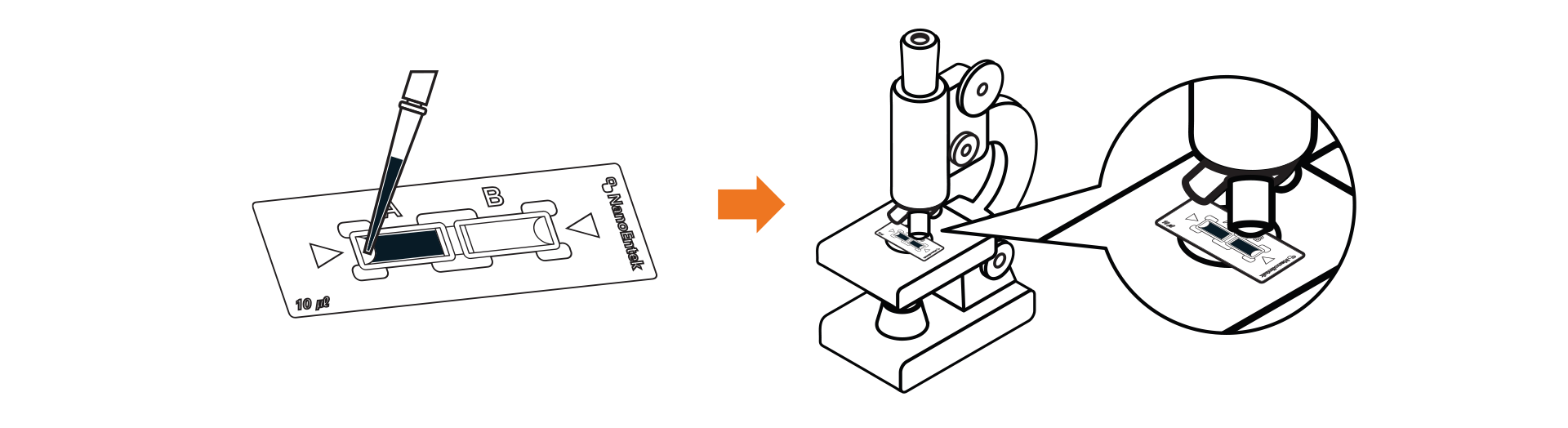

Simple & Easy steps to operate

Advantage #2
Various grid types for different uses

There 5 different grid patterns; Neubauer Improved(mammalian/primary cell), Burker, Burker Turk(combination of Burker and Thoma), Fuchs Rosenthal(Cerebrospinal fluid cell) and Malassez(Cerebrospinal fluid cell)

Advantage #3
Accuracy & Repeatability

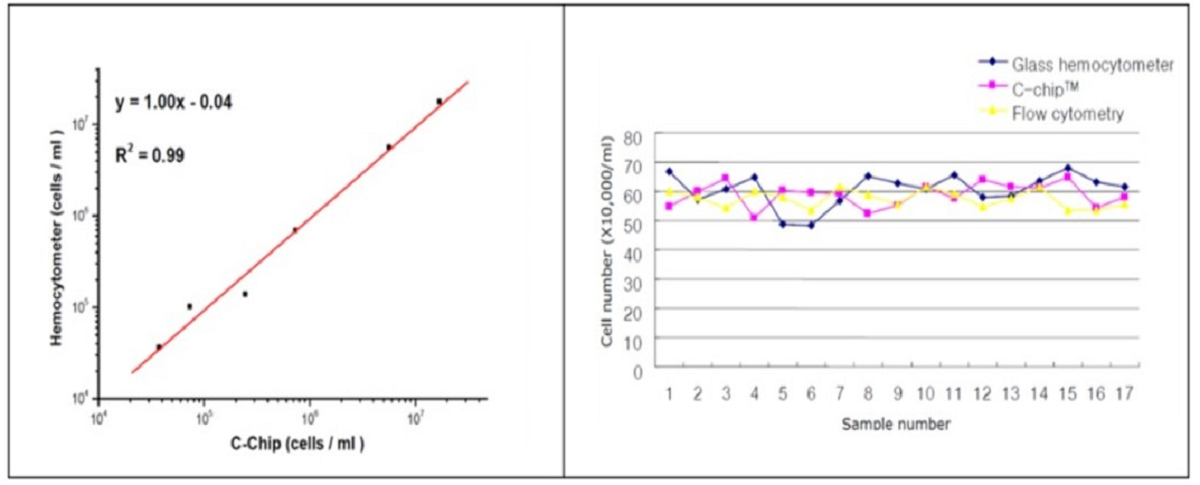

The graph on the left shows an excellent correlation of cell counting between glass hemocytometer and C-Chip 2ch. The graph on the right shows that C-Chip 2ch has less error of cell counting than glass hemocytometer due to the smaller standard deviation.

Advantage #4
Application

- Blood analysis (hematology): blood cell counting
- Cell culture: cell concentration measurement / cell viability test
- Microbiology: bacteria & fungal spore counting

Advantage #5
Ordering Information

NanoEntek blog is now open!

Want to learn more about cell counting and cell therapy?

Visit to find out more!

blog-nanoentek.com

FOR RESEARCH USE ONLY.

This product is not approved for diagnostic or therapeutic use.

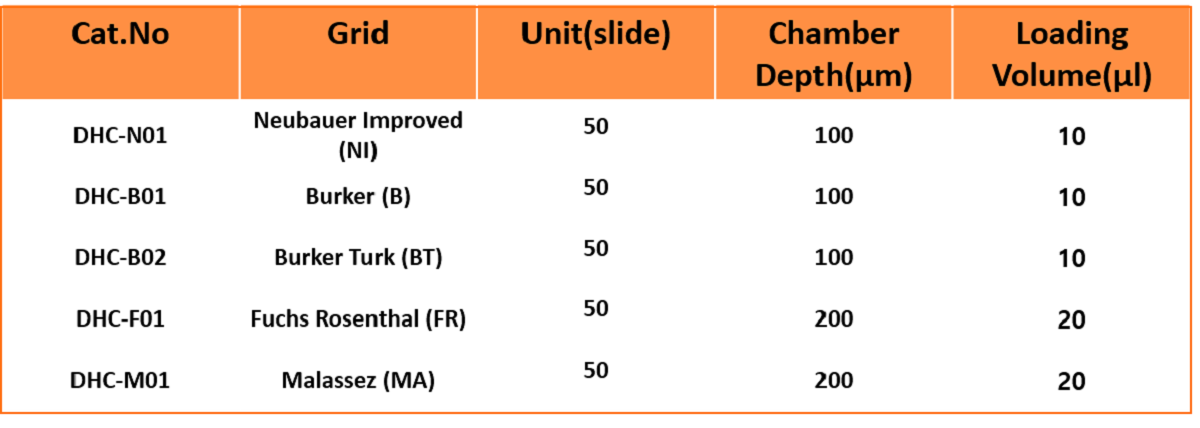

Product name / Cat. No.

DHC-N01(Neubauer Improved), DHC-B01(Buker), DHC-B02(Burker Turk), DHC-F01(Fuchs Rosenthal), DHC-M01(Malassez)
Dimension

25(W) X 75(L) X 1.6 (T) mm
Chamber depth

100 µm (DHC-N01), 100 µm (DHC-B01), 100 µm (DHC-B02), 200 µm (DHC-F01), 200 µm (DHC-M01)
Loading volume

10 µL (DHC-N01), 10 µL (DHC-B01), 10 µL (DHC-B02), 20 µL (DHC-F01), 20 µL (DHC-M01)
type

5 grid types
Sample injection amount

10 µL (DHC-N01, B01, B02) / 20 µL (DHC-F01, M01)
