JuLI™ Stage

Real-time live cell imaging system

JuLI™ Stage, the new standard of Real-time live cell imaging system is designed to get time-lapse images and make taking cell videos much easier.


KEY FEATURES

- Compact and compatible with a standard CO₂ incubator

- Fully automated X-Y-Z stage

- Multi-channel fluorescence imaging (GFP, RFP, DAPI and Bright field)

- Easy & powerful software

- Take and analyze image in real-time





See what happened

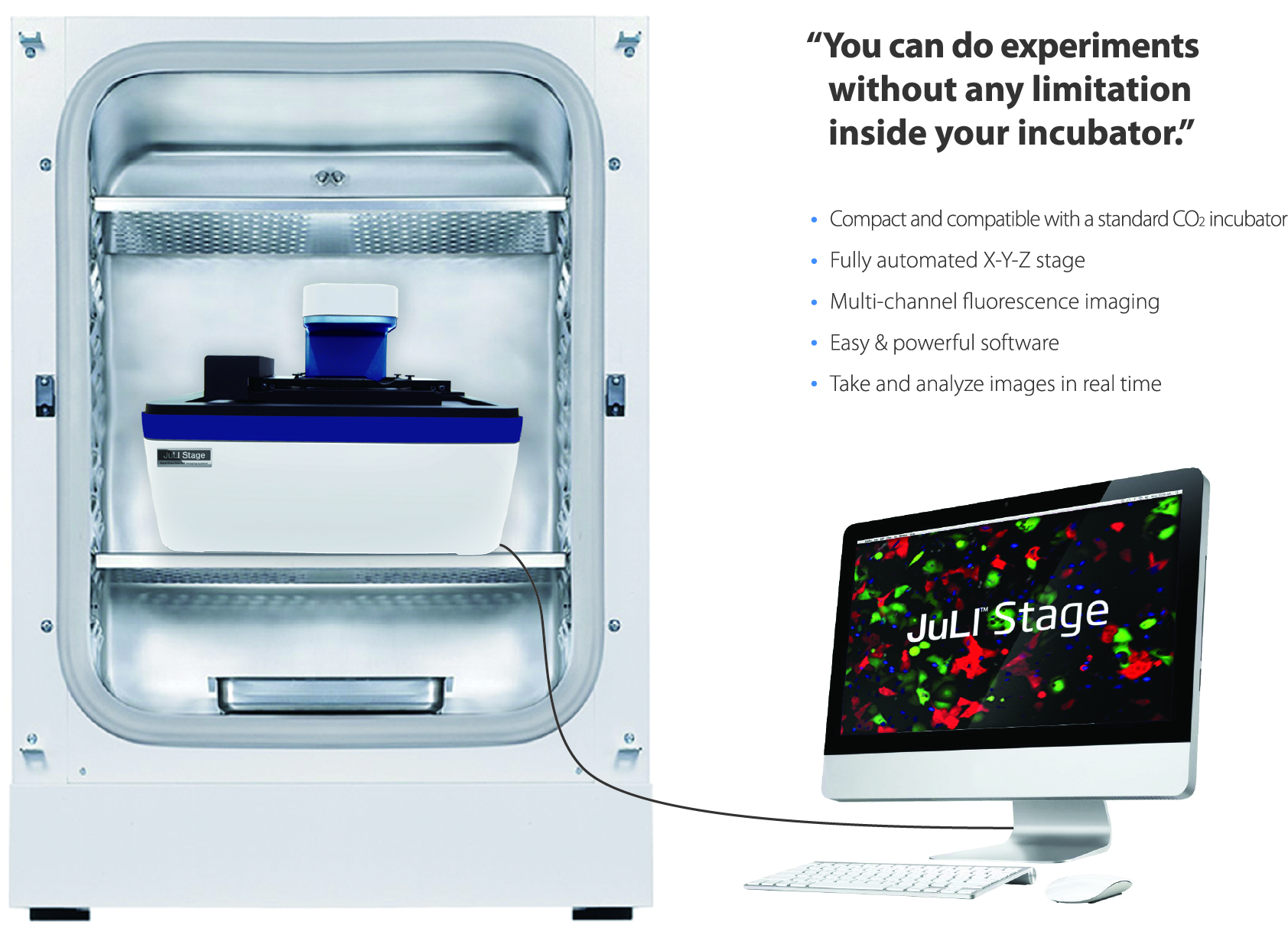

Inside incubator with JuLI™ Stage


“You can do experiments without any limitation inside your incubator.”


JuLI™ Stage is a fully-automated real-time cell imaging system that directly acquires cell images from numerous cell culture plates (6 up to 384 wells) and dished in an incubator. JuLI™ Stage supports the multi-channel fluorescent colors (GFP, RFP, DAPI) and multiple objective lens (4X, 10X and 20X), and the sensitive filter-based optics are optimized for live cell assays. It also enables users to obtain the quantified cell confluence results with low variation and the growth curve using image-based analysis with a bright field.

It saves you a lot of time and hard work and helps for real-time monitoring and the optimal time point.








The compact design of JuLI™ Stage allows it to be installed and operated In a standard incubator.
During an experiments (from hours to weeks), control and data access can be accessible from the computer (included)
outside the incubator.





Applications


JuLI™ Stage has a wide range of applications as follows.





- HCS cell imaging analysis (6 well to 384 well)
- Cell culture quality control /Cell culture optimization
- Live cell imaging (time lapse) & Cell growth monitoring
- Stem cell development
- Cell-based assay optimization
- Cell proliferation
- Cell localization
- Cell cytotoxicity
- Cell migration studies/Scratch‐wound Assays
- Angiogenesis
- Protein expression
- Kinetic imaging and cell differentiation



Basic software


Cell imaging system

JuLI™ Stage is designed to get time-lapse images in the multiple positions, which user selected.

- Observe cells in real time and record a cell history from beginning until the end.
- Revert to the time point you desire.
- Save time with a fully automatic time-lapse image function.





1) Multi-Position: Take any number of images of any positions of a well
2) Stitching Option: Easy to acquire a whole well stitching image with stitching function
3) Z-Stack Imaging (Z-axis): acquire high-quality images from Z-stack focus option




Image edit

You can import, verify and re-edit project data from JuLI™ Stage.

- Edit image in projects.
- Make movie in projects.
- Review data in your personal PC.






1) Image Editor: improving image quality with background correction and auto adjust function
2) Movie Maker: making various types of movie





Image statistics

You can import, verify and analyze project data from JuLI™ Stage.

- Get result data from project.
- Make quantitative graphs using the result data.










Optional software


Scratch stat





Scratcher creates a uniform scratch line for 96 wells easily.
Analyze scratch closure in real-time.








Spheroid stat

Provide various analysis functions of 96 spheroids in real-time.





Our valuable customers

Global pharmaceutical companies, many universities and research institutes have been using JuLI™ Stage. They are our valuable customers.











To learn more about JuLI™ Stage, click the links below!









FOR RESEARCH USE ONLY.

This product is not approved for diagnostic or therapeutic use.








Visit NanoEntek blog now!

Want to learn more about cell counting and cell therapy?

Visit to find out more!

blog-nanoentek.com






  • Light source

    Blue, Green, UV LED (Intensity adjustable)

  • Objective lens

    4X, 10X, 20X + Digital zoom / Inter–changeable objective lens

  • Fluorescence

    DAPI, GFP, RFP

  • Camera

    High–sensitivity monochrome CCD (Sony sensor 2/3”) / 1,936 x 1,456 pixels (2.8M), 53 FPS, 14 bit

  • Stage

    Automated, motorized, X–Y–Z stage / Interchangeable vessel holder

  • Exported formats

    Image: JPEG, TIFF, BMP, PNG / Video: AVI, Raw data: CSV

  • PC

    TBD

  • Operating power

    100–240V, 1.5A, 50/60Hz

  • Electronic input

    12VDC, 5.0A

  • Operating environment

    5–40°C, 20–95%

  • Dimensions

    429(W) x 310(D) x 324(H) mm

  • Weight

    18kg / 39.7LBS
