ADAM™-SCC is designed for the performance of accurate somatic cell counting with the unique image cytometer technology.
ADAM™-SCC can be used as an ideal equipment for dairies, smaller labs and veterinary institutes working with somatic cell analysis.
Principal
ADAM™-SCC somatic cell counter is a precision microscope integrated with fluorescence optic and image analysis software.

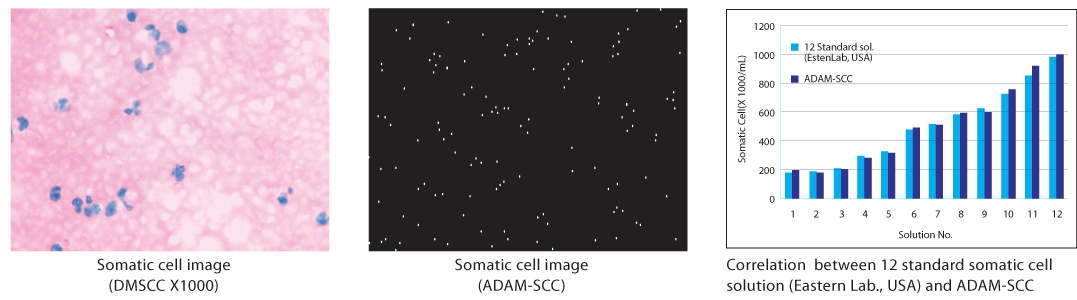

Accuracy
The below images show comparison between ADAM™-SCC and Direct Microscopic Somatic Cell Counting
(images taken by National Veterinary Research & Quarantine Service (South Korea)).

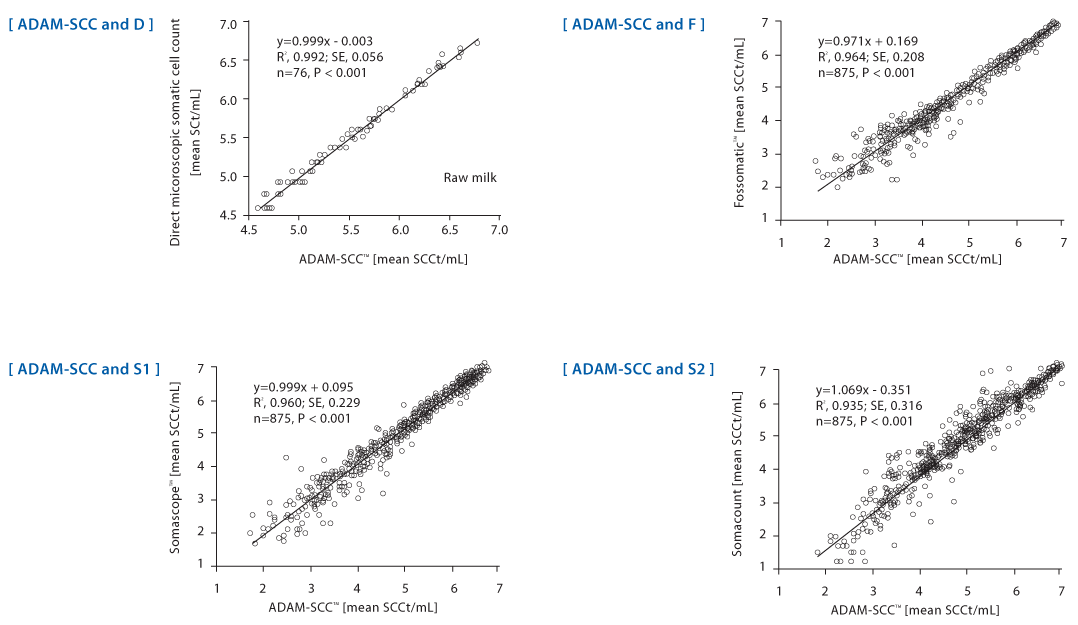

Compatibility
The below images show data correlation between ADAM™-SCC and conventional devices
(images taken by National Veterinary Research & Quarantine Service (South Korea)).
Visit NanoEntek blog now!
Want to learn more about cell counting and cell therapy?
Visit to find out more!
-
Product name / Cat. No.
ADAM–SCC / ADAM–SCC
-
Loading Volume
13 µL
-
Measuring Volume
3 µL
-
Measuring range
0.05–1.15 x 10E6 cells/mL
-
Focus
Auto focusing
-
Weight
9.0 kg
-
Size
220 (W) x 375 (L) x 250 (H) mm
-
Analysis time
2–2.5 min / test
-
Dyes
PI (Propidium Iodide)
-
Connectivity
WiFi (USB Dongle)
-
Cell type
Somatic cell
Related downloads Total 2
-
ADAM-SCC_brochure_NanoEntek
-
ADAM-SCC_user_manual_NanoEntek
